Mission80 203mm DTH Hammer Bits For Water Well Drilling

Name: Mission80 203mm DTH Hammer Bits For Water Well Drilling
Brand: New Diamond
Price: 1 USD

Brand Name : New Diamond

Model Number : Mission 60

Place of Origin : Hunan, China

MOQ : 1pcs

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs/month

Delivery Time : 2-4weeks

Packaging Details : Wooden case or as required

Type : DTH Hammer Rock Drill Bit

Machine type : Drilling Tool,Drilling Equipment,Downhole Tools

Material : Carbide,alloy steel

Processing type : Forging

Use : Well Drilling,Coal Mining,Mining and Drilling,Quarrying

Color : Blue,other color available,golden or Request

Product name : Dth bits mission80

Application : Rock Drilling,Water well drilling and rock drilling,underground mining,quarries

Advantage : High Wear Resistant,Widely used hard rocks and have good penetration,High-efficiency,high performance and factory price,Direct Manufacturer

Usage : Hole Drilling,Mining,Geothermal Drilling,Water Well Drilling

Button shape : Spherical/Ballistic/parabolic/sharp/falt bottons

Advantages : high quality and factory prices

Shank Length : 329 mm

weight : 41.2kg

Head Diam : 203 mm

Contact Now

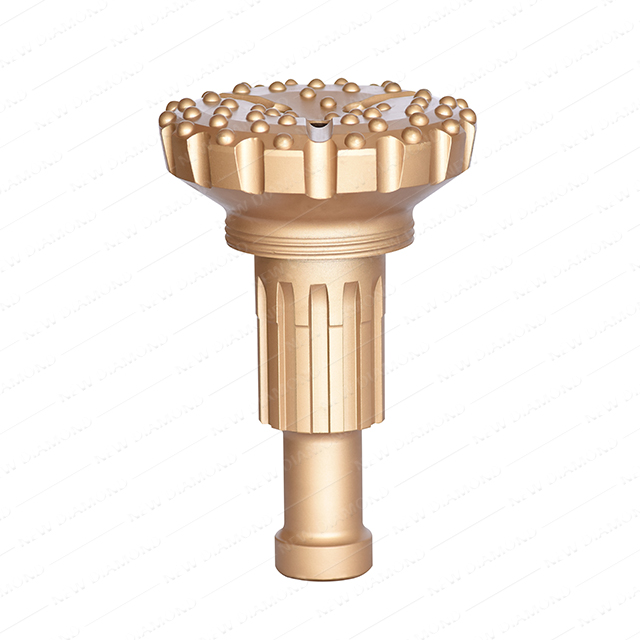

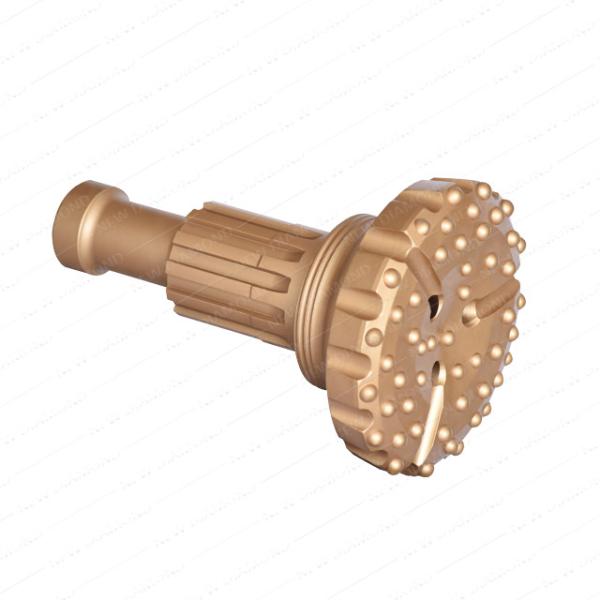

Mission 80 203mm Drill Bits For Water Well Drilling

Now the DTH drill bit is currently used in the face design. There are four main types: end surface convex surface, end surface planar surface, end surface concave surface and end surface deep concave center type. Carbide more choice of ball teeth, spring teeth or ball teeth and spring teeth shared tooth mode.

Applications

The New Diamond dive drill is mainly used in geological exploration, coal mine, water well drilling, borewell drilling, highway, railway, bridge, construction, mining, quarry, Civil engineering, ore mining,Dimension stone industry and so on.

Specifications

Mission series	Head shape	Diameter mm	Number of vents	Button qty.pcs*dia.mm			weight (KG)
Mission series	Head shape	Diameter mm	Number of vents	Button Type	Gauge	Front	weight (KG)
Mission 80	Concave Face	203	2	Spherical	10XØ18	4XØ18+10XØ16
	Flat Face	216	2	Spherical	10XØ18	4XØ18+10XØ16	46
	Concave Face	230	2	Spherical	12XØ18	12XØ18+6XØ16	48.7
	Concave Face	235	2	Spherical	12XØ18	12XØ18+6XØ16	49.3
	Concave Face	254	2	Spherical	12XØ18	12XØ18+6XØ16	56.2
	Concave Face	275	2	Spherical	12XØ18	8XØ16+19XØ16	62.8
WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

Feature Advantage

1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
3. Stable drilling speed: the bit is scraped and cut to break the rock.
4. Good performance: strong wear resistance, good diameter protection which will make the cutting teeth more efficiently.

5. Lower cost.

About Us

1.10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide

Mission80 203mm DTH Hammer Bits For Water Well Drilling

About Us

Hunan New Diamond Construction Machinery Co.,Ltd is a professional and modern high-tech enterprise which engaged in researching and manufacturing rock drill and pneumatic tools. The team has specialized in drilling and pneumatic tools manufacturing since 1998, and until 2020 the company has nearly 700 employees and covers 110000m2 area in total. It mainly designs and manufactures DTH hammers, various drilling bits, drill pipes and all kinds o f other drilling tools. The products are widely applied to earth-moving engineering, mining exploitation, oil drilling, water well drill,pile foundation engineering and etc.
